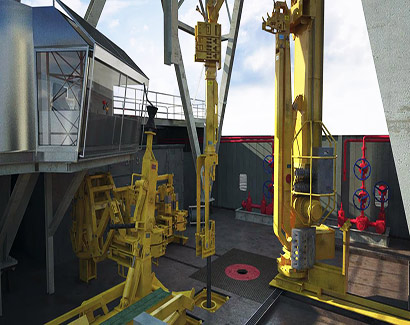

L&H's intelligent automatic pipe handling system is mainly used in various types of jack up drilling platform.The main control system is including drill grasping system, conveying system, drilling assembly system, drilling arranging system.The corresponding mechanical equipment has driller control, articulated grasping pipe machine, catwalk machine, dynamic mousehole, drilling robot, finger beam system.The system uses the grasping pipe and the catwalk machine moving drill.It uses dynamic mousehole, drilling robot and beam system to achieve single, movement and emissions of a single operation. This effectively reduce the connection root the shackle and moving time, reduced the number of operating in hazardous areas.
With the synchronous control technology of the mechanical arm movement of the pipe handling machine, the precise control function of the clamping, centering and rotation of the clamp head is realized.
Knuckle boom adopts the most advanced axis coordinate control technology in the world.
Using the double iron roughneck and double power mousehole that is the top international advanced technology, it greatly improves the work efficiency of equipment.
The hydraulic integrated control technology is adopted, which greatly improves the stability of the system.
| Kunckle Crane Technical Parameter | |
|---|---|
| Design standard | API-2C |
| Design temperature | -20℃~45℃ |
| Rotation angle | 360° |
| SWL | 3500kg |
| Clamp range | 2-7/8＂～20＂ |
| Catwalk Technical Parameter | |
| Classification | CCS/ABS |
| Design temperature | -20℃~45℃ |
| Pipe diameter angle | 2-7/8＂～36＂ |
| Pipe handling length | 8.84m~14m |
| Max.load of block | 20MT |
| Telescopic Mousehole Technical Parameter | |
| Classification | CCS/ABS/CDS |
| Classification | -20℃~45℃ |
| Pipe diameter angle | 2-7/8＂～9 1/2＂ |
| Pipe handling length | 8.84m~9.75m |
| Max.load | 10MT |
| Pipe Handling and Arranging System Technical Parameter | |
| Classification | CCS/ABS/CDS |
| Classification | -20℃~45℃ |
| Pipe diameter angle | 3 1/2＂～9 1/2＂ |
| Pipe handling length | 8.84m~9.75m |
| Fingerboard capacity | 5 1/2＂ DP 320 |
| 8＂ DC 6 | |
| 9 1/2＂ DC 5 | |
