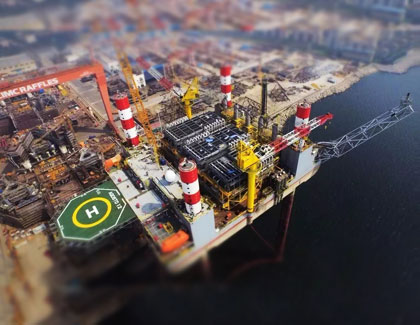

| Main Dimensions | Deck Equipment | |||||
|---|---|---|---|---|---|---|
| Molded Length | 75.0m | (246.1ft) | Cranes | 2 Sets | 50t×38m | |
| Molded Width | 60.0m | (196.9ft) | ||||
| Molded Depth | 7.0m | (23.0ft) | Storage Capacities | |||
| Design Draft | 5.0m | (16.4ft) | Diesel Oil | 410m3 | ||
| Transverse Leg Spacing | 51.2m | (168.0ft) | Potable Water | 380m3 | ||
| Longitudinal Leg Spacing | 46.2m | (151.6ft) | Preload | 3300m3 | ||
| Hazardous Drain Tank | 200m3 | |||||
| Legs | Lubricating Oil | 4m3 | ||||
| Leg Overall Length | 132m | (433.1ft) | ||||
| Leg Quantity | 4 | Design Temperature | ||||
| Leg Type | Truss opposite K-braced | Design Temperature for Steel Structure | -10°C | |||
| Spud Can Area | 143 m2 | Environment Temperature | 10°C～45°C | |||
| Diameter of Spud Can | 13.5m | (44.3ft) | ||||
| Maximum Reactio | 6,300tf | Design Life and Self-Sustaining Capability | ||||
| Design Life | 25 Years | |||||
| Jacking System | Self-sustaining Capability | 30 Days | ||||
| Number of Pinions | 4×18 Sets | |||||
| Effective Jacking | 200t Per Pinion | Classification | ||||
| Jacking Speed | 0.45m/min | ABS | ||||
|
Drive |
Electric AC | Flag | ||||
| Maximum Jacking | 258t Per Pinion | conwenience flag | ||||
| Static Holding | 318t Per Pinion | Notation | ||||
| Notation | ||||||
| Fixation System | A1,Self-elevating Unit, Hydrocarbon Processing, CPS, CRC, HELIDK, UWILD | |||||
| Static Holding | 4,200t Per Chord | Main Power Plant | ||||
| Number | 12 | Main Power | 2,500kW×3Sets | |||
| Electric | AC 690V, 60Hz | |||||
| Helideck | Model | Wartsila 6L34/40 DF | ||||
| Helicopter Type | Sikorsky S61N | Type | Dual Fuel Generator Set | |||
| Diameter | 22.2m | |||||
| Deck Type | Aluminum Alloy Material | Emergency Power Plant | ||||
|
|
Emergency Power | 730kW × 1Set | ||||
| Accommodations | Electric | AC 480V, 60Hz | ||||
| Capacity to 90 Persons | Type | Diesel Generator Drive | ||||
| With up to office/conference, etc., configured to suit client needs. | ||||||
| Deck loading | ||||||
| Function parameters | Main deck | 5t/m2 | ||||
| Natural Gas Pressing | 200MMSCFD | Accommodatation deck | 0.5t/m2 | |||
| Imported Gas Pressure | 60kg/cm2g | Machinery area | 1.5t/m2 | |||
| Export Gas Pressure | 160kg/cm2g | |||||
| Imported Gas Temperature | 45°C | Fresh water generator | 2 sets | |||
| Export Gas Temperature | 50°C | Tyoe | 反渗透式 | |||
| Operation Condition Variable Load | 1,500t | Capability | 40m3/day | |||
